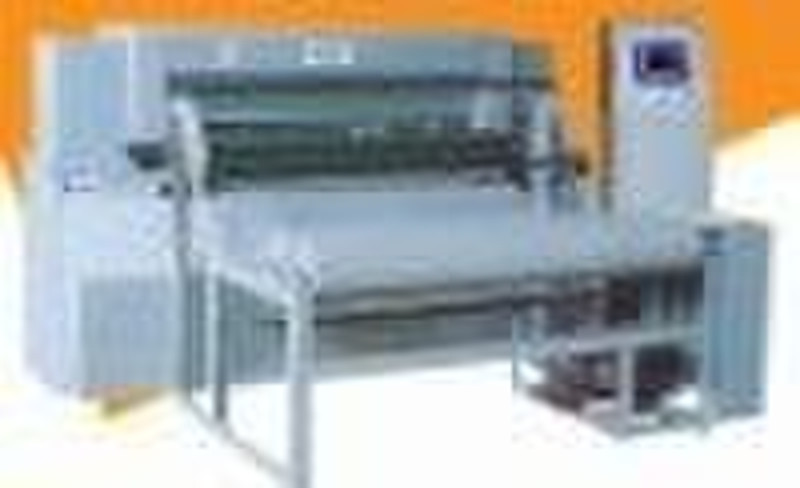

KHC-100 Multi-purpose Cutting Machine

KHC-100 Multi-purpose Cutting Machine National patent: 200720017402 Usage: Suitable for cutting materials of leather, rubber, plastic, cardboard, fabric, chemical fiber, EVA/EPE/PVC, etc. Features: 1. Controlled by computer system, and equipped with touch-screen display, so easy to operate, quick and accurate; 2. Equipped with specially designed four cylinders, to guarantee the balance and accuracy of the machine; 3. Equipped with auto feeding and rewinding system, can assemble multi knife molds simultaneously. And can get 10-20 times faster than other ordinary cutting machines; 4. It is shoe making cardboard slices of material, pressing plate can hold 15 pieces of knife moulds, continuous automatic cutting; 5. To produce belts with artificial leather, one-time cut, very few scrap; 6. Punching with auto feeding, cutting, rewinding and scrap collecting in one set, the hole distance has no deviation. Main Technical Parameters: Model KHC-100 Heightofblankingspace 50-160mm Enginepower 15KW Strokerange 5-100mm Blankingwidthrange ≤1580mm Dimension of the working table 1600*650mm Maximumcuttingforce 1000KN Badholerate ≤1.0% Holedistanceerror ≤1% Dimension 3700*2600*1750mm Totalweight 5000KG * Can be customized, please contact us for more.
